BF8024
BF8024 Thin-Disc Flat Spray
Flush-mount flat spray. Self-aligning disc.
Thin-disc flat spray nozzle designed to sit flush with the header pipe wall — no projection beyond the pipe ID. Self-aligning replaceable disc for commercial shower-bar systems, most commonly used in pulp and paper. Minimum recommended pipe size is 1" schedule 80; optimum thread engagement on 1-1/4" schedule 80 and larger.

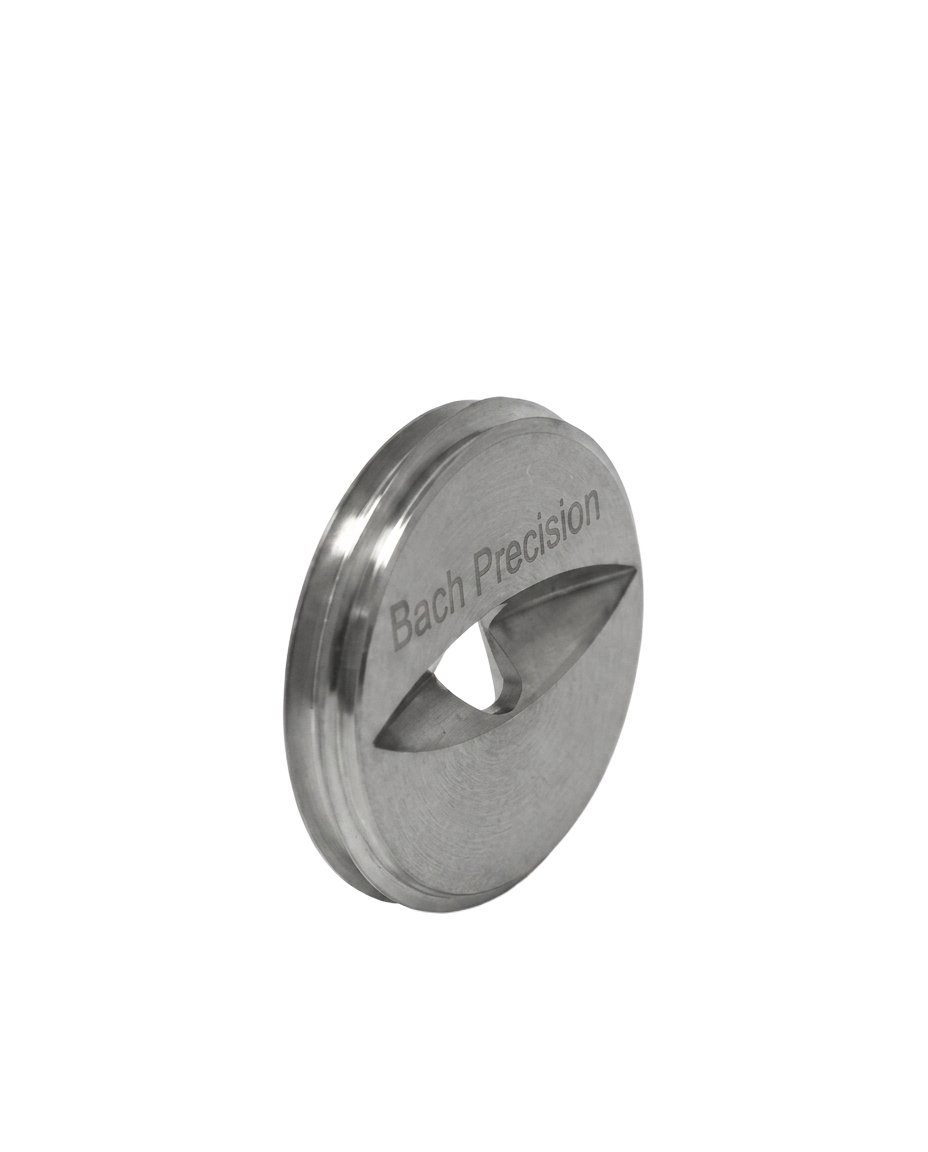

Alternate viewSpecifications
Baseline specs
Every nozzle can be tuned to your flow, pressure, and connection requirements. These are the standard ranges we ship from stock.
- Model
- BF8024
- Equiv. Orifice Diameter
- 0.119 in
- Spray Angle @ 40 psi
- 80°
- Thread
- 5/8-18 UNF (also .0DF threadless)
- Disc Thickness
- 1/8 in
- Material
- 316 / 303 Stainless
- Max Operating Pressure
- Up to 150 psi
- Capacity @ 10 psi
- 1.20 gpm
- Capacity @ 20 psi
- 1.70 gpm
- Capacity @ 40 psi
- 2.40 gpm
- Capacity @ 60 psi
- 2.94 gpm
- Capacity @ 100 psi
- 3.8 gpm
- Capacity @ 150 psi
- 4.6 gpm
Applications
Where it earns its keep
01
Pulp & paper shower bars
02
Header-pipe flush mounting
03
Self-aligning shower systems
04
Low-pressure washing
